Aluminum sheet cutting is an essential process in numerous industries, including aerospace, automotive, construction, signage, electronics, and manufacturing.
However, cutting aluminum sheets requires precision, the right equipment, and an understanding of material properties to achieve clean edges and minimize waste.
1. Understanding Aluminum Sheet Properties
Before choosing a cutting method, it’s essential to understand the properties of aluminum sheets:
- Lightweight and Soft: Aluminum is significantly softer and lighter than steel. While this makes it easier to cut, it can also make it prone to warping, burring, and deformation.
- Thermal Conductivity: Aluminum dissipates heat quickly, which can be both a benefit and a challenge in thermal cutting methods.
- Reflectivity: Aluminum’s shiny surface can reflect laser light, which may interfere with laser cutting precision.
- Alloy Variations: Different grades (e.g., 5052, 6061) have different hardness and workability, impacting the choice of cutting tools.
2. Common Aluminum Sheet Cutting Methods
The cutting method depends on sheet thickness, desired edge quality, production volume, and budget. Below are the most common cutting techniques:
2.1 Shearing
Shearing uses a mechanical blade to make straight cuts across the aluminum sheet.
- Best for: High-speed straight cuts, medium to large production runs.
- Thickness range: Typically up to 6mm.
- Advantages: Fast, clean edges, minimal setup.
- Limitations: Cannot cut curves or intricate shapes.
2.2 Guillotine Cutting
This is a type of shearing but performed with a guillotine-style press.
- Used in: Fabrication shops and manufacturing lines.
- Benefit: Ideal for cutting large sheets into manageable sizes.

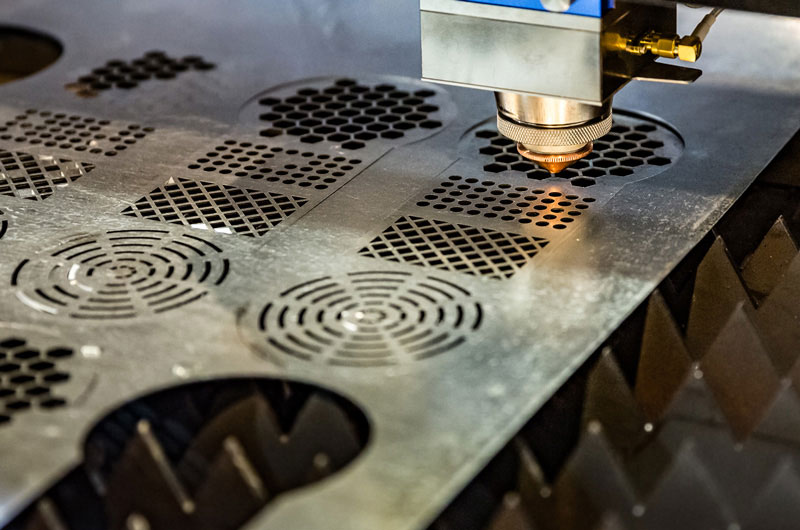

2.3 Laser Cutting
Laser cutting utilizes a focused, high-energy laser beam to melt or vaporize the material with precision.
- Best for: Precision cuts, complex geometries, tight tolerances.
- Sheet thickness: Up to 20mm, depending on laser power.
- Advantages: Non-contact process, clean cuts, high repeatability.
- Challenges: Reflectivity of aluminum requires fiber lasers or specialized coatings.
2.4 Plasma Cutting
Plasma cutting utilizes a high-temperature stream of ionized gas to efficiently melt and pierce through metal.
- Suitable for: Medium to thick sheets (typically 3mm–25mm).
- Pros: Fast, capable of cutting conductive materials.
- Cons: Rougher edge finish compared to laser, possible heat-affected zones.
2.5 Waterjet Cutting
Waterjet cutting uses high-pressure water mixed with abrasive particles to cut the sheet.
- Applications: Aerospace, art fabrication, electronics.
- Pros: No heat distortion, high precision, can cut thick sheets.
- Cons: Slower than laser, more expensive per cut.
2.6 Sawing
Circular saws, band saws, and jigsaws can cut aluminum with the proper blade.
- Blade requirement: Carbide-tipped or specially designed for non-ferrous metals.
- Advantages: Readily available tools, effective for DIY or low-volume work.
- Disadvantages: Generates burrs, requires deburring.
2.7 CNC Routing
CNC routers use rotating cutting bits to carve aluminum into desired shapes.
- Best for: 2D and 3D machining, signs, enclosures.
- Pros: High precision, customizable.
- Cons: Tool wear is higher due to aluminum’s abrasiveness.
3. Choosing the Right Aluminum Cutting Tool
The tool you select depends on your cutting method and production scale:
| Cutting Method | Recommended Tools |
|---|---|
| Shearing | Hydraulic Shears, Manual Shears |
| Laser Cutting | CO₂ or Fiber Laser Machine |
| Plasma Cutting | CNC Plasma Cutter |
| Waterjet | CNC Waterjet Cutter |
| Sawing | Circular Saw with Non-Ferrous Blade |
| CNC Routing | Router with Carbide End Mill |
| Manual Cutting | Tin Snips (for thin sheets), Jigsaw |
When cutting thicker sheets or intricate designs, investing in CNC-controlled tools often provides better precision and consistency.
4. Tips for Efficient Aluminum Sheet Cutting
4.1 Secure the Workpiece
Ensure the aluminum sheet is tightly clamped or fastened to prevent vibrations or movement during cutting, which can cause uneven edges.
4.2 Choose the Right Blade or Bit
For mechanical cutting, use tools designed for aluminum. These tools typically feature fewer teeth, wider gullets, and are constructed from high-speed steel or carbide for durability and performance.
4.3 Control the Feed Rate
A slower feed rate helps produce cleaner cuts and reduces the chance of tool breakage or overheating.
4.4 Apply Lubrication
Use cutting lubricants or sprays when using saws or routers. Lubrication reduces friction, prevents galling, and extends tool life.
4.5 Use Masking Tape
Applying masking tape over the cutting line helps prevent scratches and chipping on the surface, especially for painted or anodized sheets.
5. Cutting Thin vs. Thick Aluminum Sheets
Thin Sheets (Below 2mm)
- Tools: Tin snips, laser cutters, jigsaws.
- Challenges: Can bend or deform easily.
- Tip: Use backer boards or sandwich the sheet between sacrificial layers.
Thick Sheets (Above 3mm)
- Tools: Plasma, waterjet, CNC router, circular saw.
- Challenges: More tool wear, harder to achieve clean cuts.
- Tip: Ensure proper cooling and use multi-pass cutting if necessary.
6. Common Cutting Defects and How to Avoid Them
| Defect | Cause | Solution |
|---|---|---|
| Burring | Dull blade, high feed rate | Use sharp tools, slow down cutting speed |
| Heat Distortion | Excessive heat from cutting | Use waterjet, reduce feed speed, apply coolant |
| Poor Edge Finish | Wrong blade or dull tool | Use proper aluminum blade, deburr after |
| Warping | Lack of clamping, thin sheet vibration | Clamp sheet securely, support evenly |
| Inaccurate Cuts | Improper machine setup | Calibrate machine, double-check path |
7. Safety Tips When Cutting Aluminum Sheets
Cutting aluminum sheets can pose risks including flying debris, sharp edges, and hot surfaces. Follow these safety tips:
- Wear PPE: Safety glasses, gloves, hearing protection.
- Ventilation: Ensure proper fume extraction especially during laser or plasma cutting.
- Coolant Management: Handle cutting fluids carefully; some can be hazardous.
- Fire Risk: Aluminum dust is combustible—keep work areas clean and use spark containment.
- Proper Disposal: Collect aluminum chips and scrap for recycling.
8. Deburring and Post-Cutting Finishing
After cutting, aluminum sheets often have sharp edges or burrs. Deburring and finishing steps may include:
- Hand Filing
- Edge Sanding or Buffing
- Tumbling (for small parts)
- Chemical Deburring
- Anodizing or Coating (if needed)
A smooth edge not only improves safety but also enhances the fit and finish of the final product.
9. Environmental and Cost Considerations
Aluminum is highly recyclable, and most scrap from cutting can be reused. However, certain cutting methods (like waterjet or plasma) generate waste in the form of spent abrasives or slag.
Cost considerations include:
- Tool Wear and Replacement
- Electricity Consumption
- Maintenance and Lubricants
- Production Time and Labor
Choosing the most efficient cutting process based on job requirements helps minimize costs and maximize productivity.
