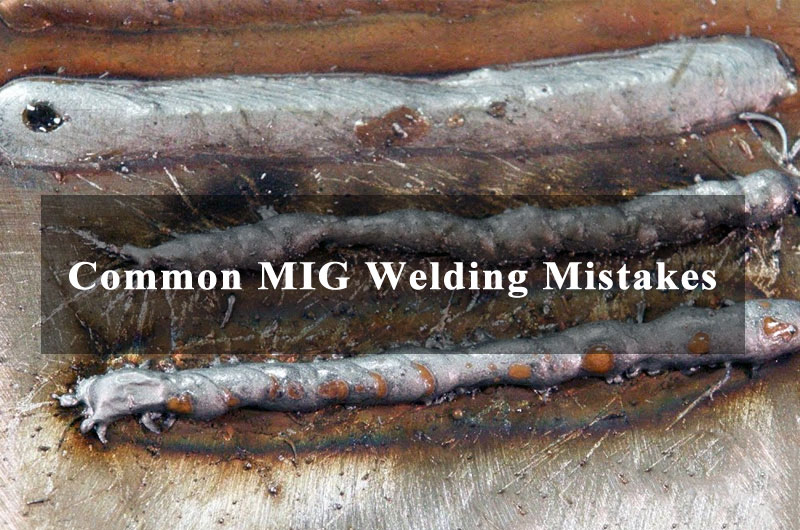

In the MIG welding process, even experienced welders can fall victim to common mistakes that compromise weld quality, safety, and productivity.
In this article, we explore the most frequent MIG welding errors and offer practical guidance to prevent them.
1. Incorrect Wire Feed Speed
Setting the wire feed speed too high or too low can lead to poor arc stability and weld defects. High speed may cause excessive spatter and burn-through, while low speed often results in an inconsistent arc or insufficient penetration.
How to Avoid It:
Always refer to a welding chart or machine settings guide provided by the wire or equipment manufacturer. Perform test welds on scrap metal to fine-tune the settings based on the material type and thickness.
2. Improper Voltage Settings
Incorrect voltage settings can create either a cold weld (too low) or burn-through (too high). Low voltage produces a poor bead shape and weak fusion, while high voltage may cause porosity or excessive penetration.
How to Avoid It:
Use the correct voltage for the wire size, material, and joint type. Many modern MIG welders have preset or synergic settings that automatically adjust voltage based on amperage—use them when available.
3. Wrong Shielding Gas Selection
Using the wrong shielding gas or improper gas flow can lead to porosity, weak welds, or increased spatter. For instance, 100% CO₂ produces deeper penetration but more spatter, while an Argon/CO₂ mix offers cleaner welds with less spatter.
How to Avoid It:
Match the shielding gas to the welding process and material. For general mild steel work, a 75% Argon / 25% CO₂ mix is a common choice. Ensure proper gas flow—typically between 20–30 CFH—and check for leaks or obstructions in hoses.
4. Poor Surface Preparation
Welding on dirty, oily, rusty, or painted metal can cause contamination, porosity, and weak welds.
How to Avoid It:
Always clean the base material thoroughly using a wire brush, grinder, or chemical cleaner. Remove all rust, oil, paint, and mill scale from the weld area before striking an arc.
5. Wrong Electrode Extension (Stickout)
Using an incorrect stickout—either too short or too long—can cause erratic arc behavior, excessive spatter, or poor penetration. Excessive stickout may also cause the wire to overheat before it reaches the weld pool.
How to Avoid It:
Maintain an electrode extension of about 3/8 inch to 1/2 inch for solid wire. For flux-cored wire, a slightly longer stickout (up to 3/4 inch) is acceptable. Monitor and adjust as needed during welding.
6. Improper Travel Speed
Moving the welding torch too fast can result in lack of fusion or undercut, while going too slow can create a wide, convex bead and risk burn-through.
How to Avoid It:
Practice maintaining a steady, consistent travel speed. Observe the weld pool—it should be fluid but controlled, and the arc should remain at the leading edge of the pool.
7. Poor Gun Angle and Technique
Using an incorrect gun angle (either pushing or dragging too far) can lead to spatter, poor penetration, or uneven bead profile. Tilting the gun too much may also reduce shielding gas coverage.
How to Avoid It:
Use a push technique (gun angled 10–15° in the direction of travel) for cleaner, flatter beads. Maintain a consistent angle and distance to ensure optimal shielding and weld penetration.
8. Lack of Practice or Training
Inadequate training leads to bad habits like inconsistent movement, poor joint fit-up, or incorrect parameter settings.
How to Avoid It:
Take the time to practice regularly, especially when working with new materials or techniques. Consider formal training or certification programs to build skills and stay updated with best practices.
9. Neglecting Safety Precautions
Overlooking safety measures—such as wearing improper protective gear or welding in poorly ventilated areas—can result in injuries, burns, or inhalation of harmful fumes.
How to Avoid It:
Wear appropriate PPE: gloves, welding helmet, flame-resistant clothing, and safety glasses. Use adequate ventilation or fume extraction systems, especially when welding coated or galvanized materials.
10. Skipping Equipment Maintenance
Dirty contact tips, worn liners, or loose connections can cause erratic wire feeding, poor arc starts, and reduced weld quality.
How to Avoid It:
Regularly inspect and maintain your MIG welding equipment. Replace worn consumables, clean the gun nozzle, and check for secure connections. A well-maintained setup ensures better consistency and performance.
