HVAC systems rely on well-designed sheet metal ducting to distribute conditioned air throughout buildings. As energy regulations tighten and owners push for lower operating costs, ductwork design and manufacturing have become more important than ever.
This guide outlines the key principles of sheet metal HVAC ducting—from airflow efficiency and material selection to manufacturing considerations—to help engineers, contractors, and facility managers choose solutions that deliver strong performance and long-term value.

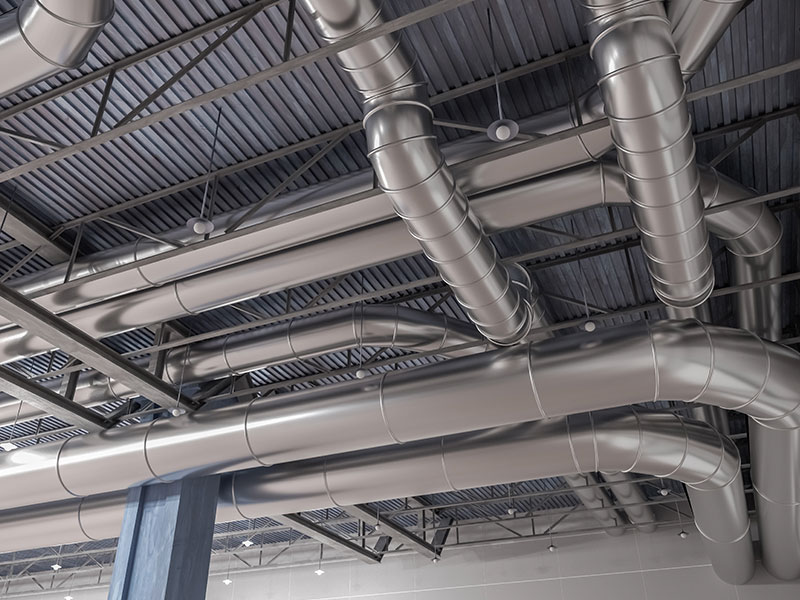

What Is Sheet Metal HVAC Ducting?
Sheet metal HVAC ducting is a fabricated network of channels used to distribute and return air within a building. Because of their formability, durability, and resistance to corrosion, it is usually made of aluminum, stainless steel, or galvanized steel.
Proper duct design ensures:
- Balanced airflow
- Reduced air leakage
- Lower energy consumption
- Improved indoor comfort
- Compliance with modern efficiency standards
Common Materials Used in HVAC Ductwork
Material selection affects fabrication ease, corrosion resistance, weight, and installation cost.
Comparison of Common Sheet Metals for HVAC Ducting:
| Material | Key Benefits | Limitations | Typical Applications |
| Galvanized Steel | Strong, corrosion-resistant, cost-effective | Heavy, harder to form | Commercial/industrial systems |
| Aluminum | Lightweight, easy to fabricate, corrosion-resistant | Higher thermal expansion | Rooftop ducts, coastal regions |
| Stainless Steel | High strength, excellent sanitation | Higher cost | Hospitals, food processing plants |
| Pre-insulated Panels | Integrated insulation, lightweight | Not suitable for high temperatures | Residential/light commercial |
Key Design Principles for Efficient Ducting
Effective duct design ensures proper airflow while reducing energy losses. The best designs follow ASHRAE guidelines and industry best practices.
Duct Layout Optimization
An efficient layout aims to:
- Minimize sharp turns
- Reduce overall duct length
- Balance supply and return systems
- Avoid unnecessary fittings
Duct Sizing Methods
Two widely used methods:
- Equal Friction Method – keeps friction loss consistent per unit length
- Static Regain Method – used in high-velocity systems to maintain uniform pressure

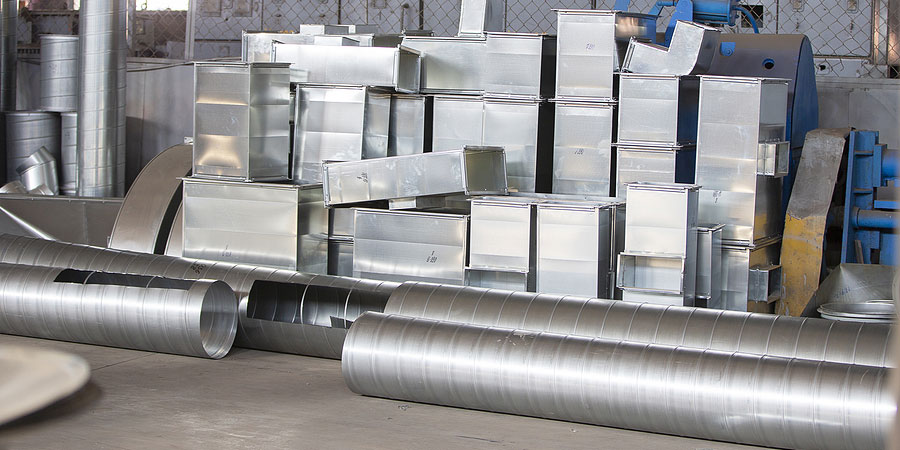

Choosing the Right Shape
- Rectangular Ducts: space-saving but higher friction
- Round Ducts: best airflow efficiency and lower leakage
- Oval Ducts: a compromise between round and rectangular
Efficiency Comparison of Duct Shapes:
| Duct Shape | Airflow Efficiency | Leakage Risk | Installation Space |
| Round | ★★★★★ | Low | Requires more diameter |
| Oval | ★★★★☆ | Medium | Moderate |
| Rectangular | ★★★☆☆ | High | Best for tight spaces |
Factors Influencing HVAC Duct Efficiency
Air Leakage and Sealing Quality
Well-sealed ducts reduce energy loss and maintain system pressure. Poor sealing can increase energy waste by 10–40%.
Key sealing methods include:
- Mastic sealants
- High-quality duct tape (UL 181)
- Mechanical fasteners
Insulation Requirements
Insulation prevents:
- Thermal loss
- Condensation
- Indoor air quality issues
Common insulation materials:
- Mineral wool
- Fiberglass
- Foam board
Static Pressure Management
Proper static pressure:
- Reduces blower strain
- Improves airflow delivery
- Ensures balanced comfort across rooms
Manufacturing Considerations for Sheet Metal Ducting
Modern HVAC duct fabrication relies on a combination of CNC cutting, forming, welding, and assembly processes. Manufacturing quality directly influences field performance and installation efficiency.
Fabrication Methods
Common metalworking equipment includes:
- CNC plasma or laser cutting machines
- Sheet metal bending brakes
- Seam closing machines
- Spiral duct forming machines
- Welders and lock-form seamers
Tolerances and Accuracy
Precise manufacturing improves installation speed and reduces air leakage.
Critical tolerance points:
- Flange alignment
- Seam tightness
- Dimensional accuracy within ±1–2 mm
- Smooth internal surfaces to reduce friction
Coatings and Surface Treatments
Depending on the environment:
- Galvanization for corrosion resistance
- Powder coating for aesthetic and protective finish
- Epoxy coating for chemical-intensive facilities
- Anti-microbial coatings for hospitals and cleanrooms
Installation Best Practices
Improper installation can undermine even the best-designed ducts.
Best Practices:
- Support ducts at recommended intervals
- Avoid excessive flex duct usage
- Seal all joints and connections
- Ensure adequate clearance for maintenance
- Test airflow after installation
Cost Considerations in HVAC Ducting
Cost depends on material, labor, complexity, and system size.
Typical Cost Factors for Sheet Metal Duct Systems
| Category | Description | Cost Impact |
| Material Type | Steel, aluminum, stainless steel | High |
| Duct Shape | Round/rectangular/oval | Medium |
| Insulation | Type and thickness | Medium |
| Labor Complexity | Fittings, bends, elevation changes | High |
| Coating | Powder, epoxy, anti-corrosion | Low–Medium |
| Transportation | Distance from the fabrication shop | Low |
When to Choose Custom Sheet Metal HVAC Ducting
Custom-fabricated ducts are ideal when:
- The project requires specific shapes or sizes
- High-performance airflow is essential
- Facilities demand food-grade or medical-grade materials
- The building layout is complex
- Local codes require special materials
Custom systems provide:
- Better fit
- Lower leakage
- Longer life cycle
- Improved energy efficiency
Industry Standards & Compliance Requirements
Ensure compliance with:
- ASHRAE Standards
- SMACNA Duct Construction Standards
- ISO 9001 Manufacturing Quality Standards
- Local mechanical codes
Following these guidelines ensures safety, durability, and efficiency.
Sheet metal HVAC ducting remains the backbone of efficient building ventilation. By understanding design principles, airflow dynamics, manufacturing quality, and material considerations, businesses can create duct systems that deliver better performance, reduced energy consumption, and long-term value.
Whether for new construction or retrofitting, investing in high-quality duct design and fabrication ensures a more reliable and energy-efficient HVAC system—ultimately benefiting contractors, engineers, and building owners alike.
