In the world of metal fabrication, both stainless steel and mild steel are widely used materials due to their versatility, strength, and cost-effectiveness.
However, when it comes to cutting these materials, the methods, challenges, and considerations differ significantly.
This article explores the key differences between stainless steel cutting and mild steel cutting, examining their physical properties, metal cutting techniques, tool wear, heat management, and practical applications.
Understanding the Materials
Stainless Steel
Stainless steel is an iron-based alloy containing a minimum of 10.5% chromium, often blended with elements such as nickel, molybdenum, and manganese. The addition of chromium provides excellent corrosion resistance, making it ideal for applications exposed to moisture, chemicals, and high temperatures. Stainless steel is hard, tough, and often work-hardens quickly during processing.
Mild Steel
Mild steel, also known as low carbon steel, typically contains 0.05% to 0.25% carbon. It is more malleable and ductile compared to stainless steel, with lower tensile strength and corrosion resistance. It’s a common choice for structural applications, general fabrication, and automotive parts.
Key Differences in Cutting Stainless Steel vs. Mild Steel
1. Material Hardness and Machinability
One of the most critical differences lies in the hardness of the materials:
- Stainless Steel is much harder than mild steel and tends to harden further when cut. This phenomenon, known as work hardening, makes continuous cutting more difficult and increases tool wear.
- Mild Steel is softer and more forgiving. It doesn’t work-harden as easily and can be cut at higher speeds using a broader range of tools and methods.
Conclusion: Mild steel is easier to cut than stainless steel, requiring less force and allowing faster processing.
2. Tool Wear and Cutting Tools
Because of its toughness and high tensile strength, cutting stainless steel leads to:
- Faster tool wear: Stainless steel quickly dulls cutting tools, especially if the tools are not made from materials like carbide or coated with special wear-resistant layers.
- Need for specialized tooling: High-speed steel (HSS), cobalt tools, or carbide-tipped blades are commonly used for stainless steel cutting.
In contrast, mild steel:
- Causes less wear on tools
- Can be cut with standard HSS or even carbon steel blades in light-duty applications
Conclusion: Cutting stainless steel requires more robust tooling and frequent replacement compared to mild steel.
3. Cutting Speeds and Feeds
The cutting speed (measured in surface feet per minute, or SFM) and feed rate (inch per tooth or IPT) are crucial in machining.
- To avoid overheating and work hardening when machining stainless steel, cutting speeds must be reduced and coolants used to dissipate heat and extend tool life.
- Mild Steel allows for higher cutting speeds and less coolant use, improving efficiency and reducing cycle times.
| Material | Typical Cutting Speed (SFM) |
|---|---|
| Mild Steel | 100 – 300 SFM |
| Stainless Steel | 30 – 150 SFM |
Conclusion: Mild steel enables higher machining speeds, reducing production time.
4. Thermal Conductivity and Heat Generation
- Stainless Steel has poor thermal conductivity, meaning the heat generated during cutting is concentrated at the cutting edge. This raises tool temperature and wear risk.
- Mild Steel dissipates heat more effectively, reducing the thermal load on cutting tools and the workpiece.
Conclusion: Cutting stainless steel requires enhanced cooling strategies like flood coolant or mist systems, unlike mild steel.
5. Cutting Methods: Laser, Plasma, Waterjet, and Mechanical
Different cutting methods perform uniquely on these materials.

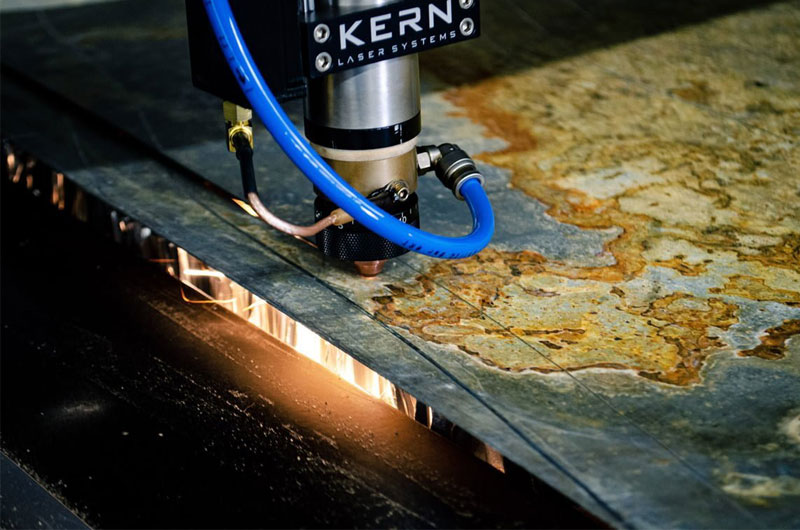

Laser Cutting:
- Stainless steel reflects laser beams more than mild steel, requiring higher power and special beam wavelengths (e.g., fiber lasers).
- Mild steel cuts faster and with less energy.

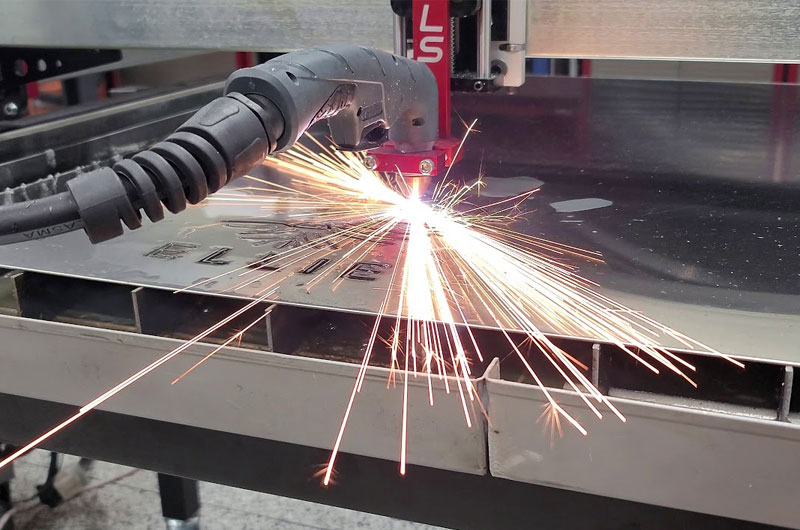

Plasma Cutting:
- Works well on both materials, but edge quality may vary. Stainless steel edges may require post-processing due to oxidation.
Waterjet Cutting:
- Offers excellent results for both, as there is no heat-affected zone (HAZ).
- Ideal for stainless steel to prevent discoloration and heat distortion.
Mechanical Cutting (Sawing, Milling, Shearing):
- Stainless steel requires lower feed rates, sharp tools, and good lubrication.
- Mild steel can be sheared or sawn with minimal concern for work hardening or overheating.
Conclusion: Mild steel is compatible with a wider range of cutting methods, while stainless steel may require more advanced or precise techniques.
Cost Implications
Because stainless steel is harder to cut and wears tools faster, the overall cutting cost is significantly higher:
- Tool Costs: More frequent replacement of cutting tools and use of premium materials (like coated carbide).
- Labor and Time: Slower machining speeds increase cycle time.
- Energy Usage: Higher power requirements for cutting machines, especially lasers and mills.
Conclusion: Mild steel is more economical to cut and process, making it suitable for high-volume, budget-sensitive projects.
Surface Finish and Post-Processing
- Stainless Steel: Prone to heat discoloration during thermal cutting. Requires pickling, passivation, or grinding to restore surface finish.
- Mild Steel: Surface finish is less critical for most applications, and oxidation is expected unless painted or coated.
Conclusion: Post-processing of stainless steel is more intensive to maintain corrosion resistance and aesthetic quality.
Applications
- Stainless Steel Cutting Applications:
- Food and beverage equipment
- Medical devices
- Marine components
- Architectural panels
- Mild Steel Cutting Applications:
- Automotive parts
- Structural beams
- Frames and brackets
- General fabrication
Each material suits specific industries and uses, with cutting strategies adapted accordingly.
Final Thoughts
While both stainless steel and mild steel are essential in metalworking, cutting them presents distinct challenges and opportunities. Mild steel offers ease of cutting, reduced costs, and faster production. Stainless steel, though more demanding, provides unmatched corrosion resistance and strength for high-end applications.
Choosing the right material and cutting strategy depends on the intended application, budget, and required precision.
Key Takeaways:
- Stainless steel is tougher, harder to cut, and requires more advanced tools and slower speeds.
- Mild steel is easier to cut, with lower tool wear and broader process compatibility.
- Proper heat management, tool selection, and cutting methods are critical for stainless steel.
- Cost, application requirements, and desired finish influence material choice and cutting strategy.
